MODEL ETS TxRx9421C

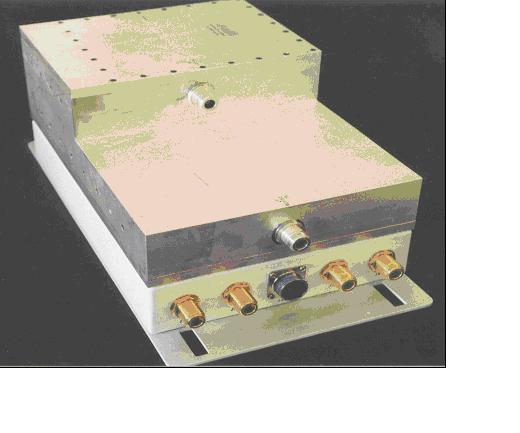

TxRx Chassis Dimensions

Transmit / Receive Assemblies : 12" x 8" x 6"

MODEL

Tx Range

( MHz )

Tx Power max

( dBm )

Rx Range

( MHz )

Rx Gain

( dB min )

Rx Noise Figure dB

Tx to Rx Isolation ( dB min )

ETS TxRx 9421C

290 - 320

53

240 - 270

22

< 4 dB

55 dB

ETS TxRx 9422

440 - 470

50

400 - 420

22

< 4 dB

55 dB

Call factory for other frequency ranges and options (410) 967-2248 Email Engtech

Switchable Filter Assemblies :

MODEL

# of Filters per Assembly

Center Frequency Range

( MHz )

Bandwidth Range

( Percent )

# of Sections per Filter

Operation Temperature

Deg C

ETS SWF-2

2

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF-3

3

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF-4

4

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF-5

5

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF-6

6

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF-8

8

50 to 6000

1 to 70

2 to 6

-10 to + 55

ETS SWF 2-2

2 + 2

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF 4-4

4 + 4

50 to 6000

1 to 70

2 to 8

-10 to + 55

ETS SWF 6-6

6 + 6

50 to 6000

1 to 70

2 to 6

-10 to + 55

Call factory for additional options (410) 453-0594 Email Engtech
