Standard Dimensions: 19" x 5.25" x 19", 19" x 3.50" x 12", and 19" x 1.75" x 12"

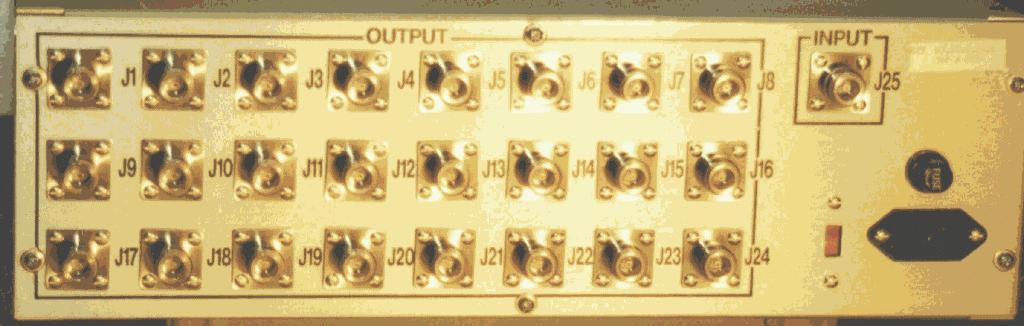

Model: ETS 3.8G-0.8-24

Multicouplers :

MODEL Frequency

( MHz )

Output

Ports

Gain

( dB )

Isolation

Between

Outputs

( dB)

Noise Figure

( dB )

Input

P1 dB

Compression

( dBm )

Input

VSWR

Output

VSWR

ETS M70-60
40 - 100
4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M70-50
55 - 95
4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M70-40-10A
50 - 90
10
0 to 30
45 min
< 8
-20
1.5 : 1
1.5 : 1
ETS M140-60 110 - 170 4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M140-50 115 - 165 4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M140-40 120 - 160 4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M310-180 220 - 400 4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M875-250 750- 1000 4 to 16 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M1G-100 950-1050 4 to 8 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M1G-80 960-1040 4 to 8 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M1G-50 975-1025 4 to 8 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M1G-40 980-1020 4 to 8 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M2.3G-200 2200-2400 4 to 8 0 to 10
25 to 50
< 6
-10
1.75 : 1
1.75 : 1
ETS M1.9G-2.2 800-3000 4 to 16 0 to 10 20 to 40
< 8.0
-10
1.75 : 1
1.75 : 1
ETS M3.8G-0.8 3400-4200 8 to 24 0 to 10 20 to 40
< 4.5
0
1.5 : 1
1.5 : 1
ETS M6G-4.0 4000-8000 4 to 16 0 to 10 20 to 30
< 6.0
-10
1.75 : 1
1.75 : 1
ETS M05-18GA 500-18000 8 to 16 2 to 20 18 to 40
< 7.5
-15
2.5 : 1
2.5 : 1

Options :

A Panel RF Connector Location : Front Panel (A1), Rear Panel (A2)

B Number of Output Ports ( B4, B8, B12, B16 )

C Connector Type ( SMA female (C1), TNC female (C2), N female (C3), BNC female (C4) )

D Front Panel Color : ( Black (D1), Cream (D2), Gray (D3) )

E Manual Front Panel Gain Control ( 0 to 20 dB ) Continuously Adjustable

F Increased Output Isolation ( by 20 dB )

G -20 dB Output Coupled Ports

H AC Power H1: 115 VAC, H2: 115/230 VAC center>

Call factory for more details / options (410) 967-2248 or email Engtech
