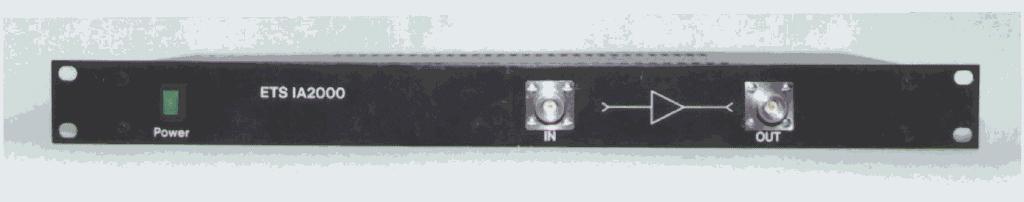

MODEL ETS IA2000 Standard Chassis Size

Distribution Amplifiers: RF Amplifier 19" x 1.75" x 12"


MODEL	Number of Channels	Frequency Range	Gain Options ( dB )	Noise Figure ( dB )	Output Power ( dBm )
ETS 21.4 RA	1 to 16	18.5 to 24 MHz	10 to 45 dB	< 4.0	+ 10 to 20
ETS 197 RA	1 to 8	40 to 150 MHz	10 to 40	< 4.0	+ 10 to + 30
ETS 297 RA	1 to 8	100 to 800 MHz	10 to 40	< 4.0	+ 10 to + 22
ETS 497 RA	1 to 8	0.5 to 1.0 GHz	10 to 40	< 4.0	+ 10 to + 22
ETS 597 RA	1 to 8	0.8 to 1.5 GHz	10 to 40	< 4.0	+ 10 to + 24
ETS IA 2000	1 to 4	2 to 2000 MHz	18 dB	< 6.0	+18
ETS 697 RA	1 to 8	1.0 to 2 GHz	10 to 40	< 4.0	+ 18 to + 27
ETS 797 RA	1 to 8	2 to 2.4 GHz	10 to 40	< 4.0	+ 10 to + 24
ETS 897 RA	1 to 8	0.5 to 2 GHz	10 to 40	< 3.0	+ 12 to + 19
ETS IA 4000	1 to 8	0.5 to 4 GHz	10 to 40	< 4.5	+ 12 to + 18
ETS IA 6000	1 to 8	1.5 to 6 GHz	12 to 36	< 6.0	+13
ETS 1097 RA	1 to 8	2 to 8 GHz	10 to 40	< 6.0	+ 7 to + 24
ETS 1197 RA	1 to 8	6 to 12 GHz	10 to 40	< 6.0	+ 16 to + 27
ETS 1297 RA	1 to 8	8 to 18 GHz	10 to 40	< 6.5	+ 12 to + 27
ETS 1397 RA	1 to 8	2 to 18 GHz	10 to 30	< 7.0	+ 10 to + 15
ETS 1497 RA	1 to 8	18 to 26 GHz	10 to 24	< 7.5	+ 10



Options :

A A1: Front Mount RF Connectors, A2 Rear Mount RF Connectors

B Min P1, B1: 10 dBm, B2: 13 dBm, B3: 16 dBm, B4: 20 dBm, B5 22dBm, B6: 24 dBm, B7: 27 dBm

C Connector Type, C1: SMA Female, C2: TNC Female, C3: N Female, C4: BNC Female

D Front Panel Color, D1: Black, D2: Cream, D3: Gray

E E1: -20 dB Output Coupled Port, E2: -20 dB Input Coupled Port

F Isolator Input / Output Isolation (20 dB, 1 watt ) for models > 900 MHz (up to octave bandwidth)
