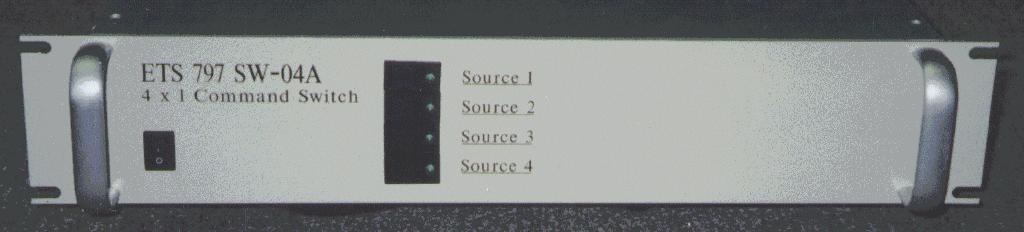

RF Switching Assemblies : MODEL ETS SW-04 Standard Chassis Size

1 x 4 RF Switch 19" x 3.5" x 12"

MODEL
Switch Configuration
Number of Switches
Insertion Loss

(dB) typ

Frequency Range

( GHz)

ETS SW-02
1 x 2
1 to 8
< 0.6
DC to 18
ETS SW-03
1 x 3
1 to 4
< 0.6
DC to 18
ETS SW-04
1 x 4
1 to 4
< 0.6
DC to 18
ETS SW-06
1 x 6
1 to 3
< 0.6
DC to 18
ETS SW-08
1 x 8
1 to 2
< 0.6
DC to 18




Model SWM 8 x 8 C
Switch Matrix :
MODEL
Switch Configuration
VSWR

IN / OUT

Insertion Loss

( dB ) typ

Frequency Range

( GHz )

ETS SWM 2 - 4
2 x 4
1.2 : 1.0
< 1.5
DC to 18
ETS SWM 4 - 8
4 x 8
1.2 : 1.0
< 1.5
DC to 18
ETS SWM 8 - 8
8 x 8
1.2 : 1.0
< 1.5
DC to 18
ETS SWM 6 - 12
6 x 12
1.2 : 1.0
< 1.5
DC to 18

Options: A1 Front Panel RF Connectors A2 : Rear Panel RF Connectors

C Connector Type ( C1 : SMA female, C2 : TNC female, C3 : N female, C4 : BNC female )

D Front Panel Color ( D1: Black, D2 : Cream, D3 : Gray )

E 50 ohm Terminations ( 1 watt )

F Latching Switches ( normally open standard )

G1 Rear Mount RS 232 Control G2 : Front Mount RS 232 Control G3 Rear Mount GPIB Control

H Front Panel Manual Control with Indicators

Call factory for other options including solid state switch assemblies (410) 967-2248 Email Engtech
